Instructions to Updating a Code Table Outside of Clarify

Cleo Clarify Workbench

Updating a Code Table Outside of EBI 3

Step 1 - Create Code Table

Below is an example of a Code Table that could be used in Cleo Clarify.

Cleo Clarify EXTOL Business Integrator (EBI) 3 Code Table

Step 2 - Locate the Code Table

If an Clarify user did not want to use the Cleo Clarify studio to update the code table when needed, we could update the file manually.

First the Clarify user would need to know the path to the Code Table file.

If the Clarify user already knows the path to the workspace folder then the code table object can be located.

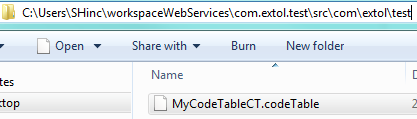

Cleo Clarify EXTOL Business Integrator (EBI) 3 Code Table workspace path

If the Clarify user does not know the path they can right click the Code Table object and select Properties.

Cleo Clarify EXTOL Business Integrator (EBI) 3 Code Table studio properties

A box will appear and select Resource. This will show the path to the object.

Cleo Clarify EXTOL Business Integrator (EBI) 3 Code Table studio property resources

Step 3 - Updating the Code Table File

To update the file the EBI user will need to open the file with an editing program. In this example, the Clarify user will be using UltraEdit.

TextPad and any other editing program will work as well.

Below, is the the Code Table opened as a simple text file.

Cleo Clarify EXTOL Business Integrator (EBI) 3 Code Table UltraEdit Before Update

In the scenario below we update the Kmart entry with the value to “5555”.

After updating the Kmart entry below, the EBI user needs to save the file.

Cleo Clarify EXTOL Business Integrator (EBI) 3 Code Table UltraEdit After Update
